No longer simply a dirty job that must be done, the collection of used cooking oil (UCO) is a profit centre for the modern food service kitchen. With rebates from cooking oil recyclers adding up to thousands of dollars each year, properly handling this commodity is paramount. No matter the size of your operation or the configuration of your kitchen, we have the UCO options to collect and store oil safely, cleanly, and profitably.
These units can be housed anywhere indoors, including far away from fryer vats if necessary. Direct-Plumbed®, pump station, and caddy options create added versatility and convenience.
Standard Features
- Heavy-gauge stainless steel exterior
- Level indicators with safety overflow protection
- Control panel with power indication or digital reader
- Suitable for Direct-Plumbed®, Remote-Plumbed® or Caddy systems
- Easy to access and service components
- One-year warranty on all parts and components
- Worldwide delivery and installation available
Direct-Plumbed® System: Your existing fryer is plumbed to a secure waste oil holding tank.
Benefits
- Minimal or no handling of hot waste shortening
- Insurance and Workers’ Comp savings
- Less employee downtime
- Labour savings and greater employee safety
- Cleaner grounds and image
- Waste oil of higher value to collection companies
- Avoid pollution fines
Models

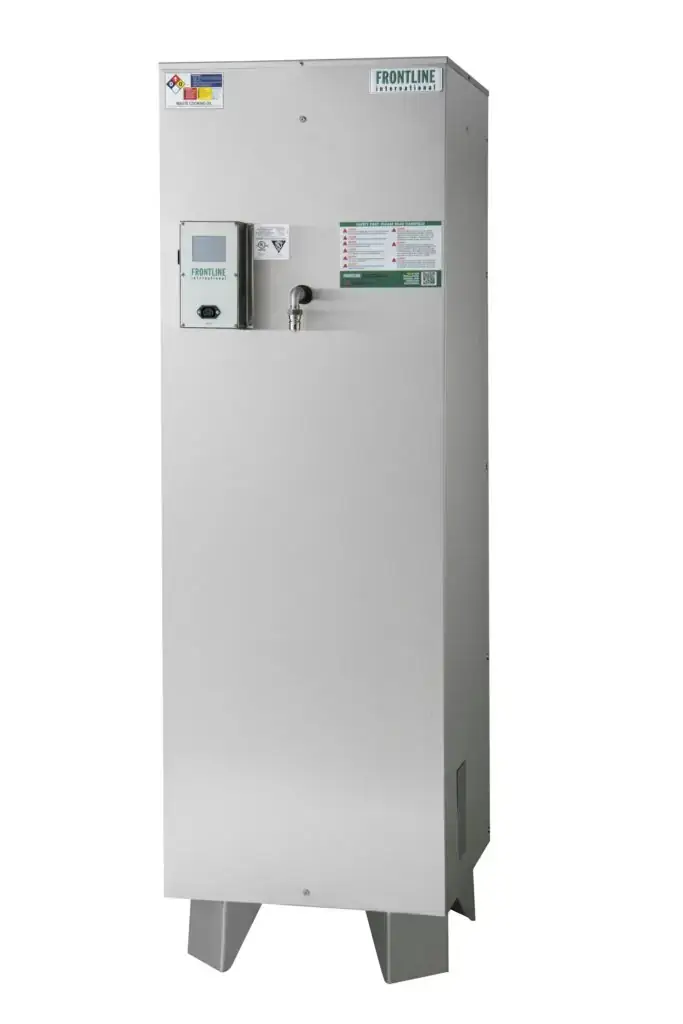

MODEL 2478SQ-NA
150 gal | Tank with a smaller footprint. Height is taller than standard tank height.
No matter the size of your operation or the configuration of your kitchen, we have the UCO options to collect and store oil safely, cleanly, and profitably.
- Heavy-gauge stainless steel exterior (sides, bottom and legs)
- Freestanding, 24 in. (609 mm) square x 85.5 in. (1981 mm) height
- Stainless steel tank bottom and legs
- 6 in. (152 mm) high stainless steel legs and floor clearance
- Tank capacity 1151 Lb/150 Gal (522 kg/567 l)
- Control panel with power indication or digital reader
- Level indicators with safety overflow protection
- UL, UL Sanitation Listed (U.S. and Canada)
- Suitable for Direct-Plumbed®, Remote-Plumbed® or Caddy systems
- Easy to access and service components
- One-year warranty on all parts and components
- Worldwide delivery and installation available

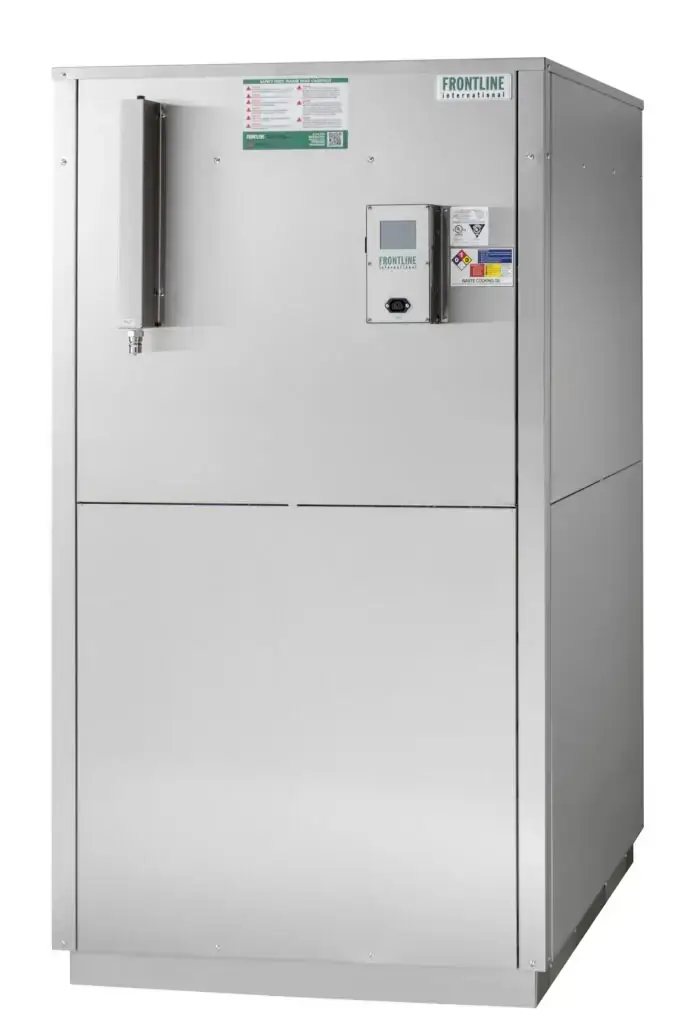

MODEL 4073SQ
352 gal | Indoor version of our space-saving square tank with a larger footprint.
It can be housed anywhere indoors, including far away from fryer vats if necessary. Direct-Plumbed®, pump station, and caddy options create added versatility and convenience.
Direct-Plumbed® System: Your existing fryer is plumbed to a secure waste oil holding tank.
- Heavy-gauge stainless steel exterior
- Freestanding, 40 in. l x 40 in. w x 73 in. h (1016mm x 1016mm x 1855mm)
- Stainless steel tank platform bottom
- Tank capacity 2702 Lb/352 Gal (1225 kg/1332 l)
- Control panel with power indication or digital reader
- Level indicators with safety overflow protection
- Suitable for Direct-Plumbed®, Remote-Plumbed® or Caddy systems
- Easy to access and service components
- One-year warranty on all parts and components
- Worldwide delivery and installation available
Configurations
1) Direct-Plumbed® System
Transfer oil with our fully automated system to ensure you never touch cooking oil again. Fryers are plumbed into a secure waste-oil holding tank. Push a button; oil flows directly to the waste oil tank.
2) Pump Station
Fryer not equipped with a built-in filtration pump? The pump station easily suctions spent grease from the fry vat and pumps it to a containment tank.
3) Caddy System
Not ready to install plumbing? Caddy the oil from fryer to tank.
